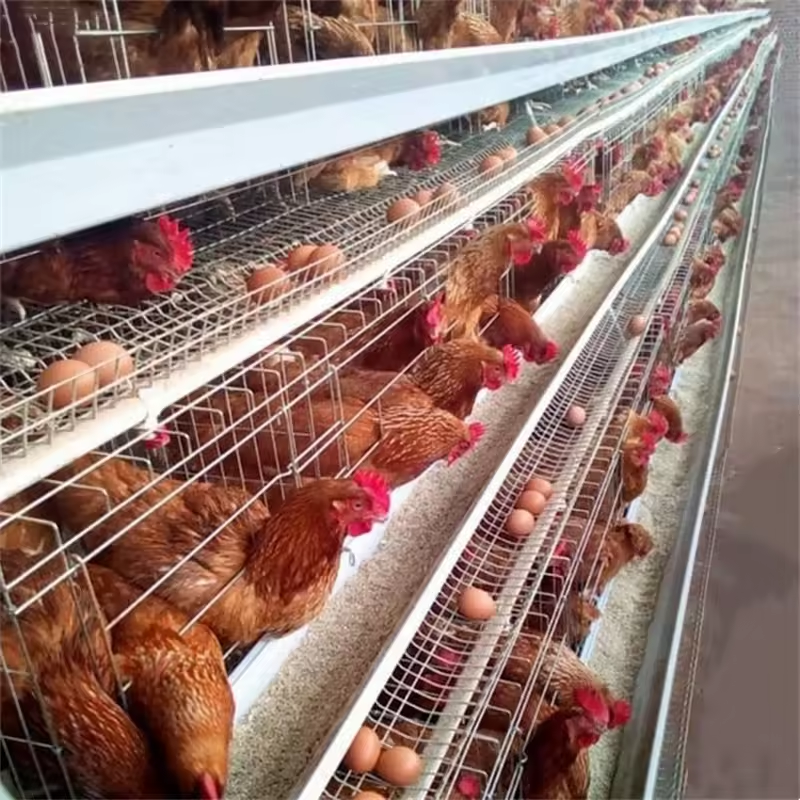

A-Type Galvanized Layer Cage for Poultry Farm

Product Introduction

Our A-Type Galvanized Layer Chicken Cage system is engineered for commercial poultry farms seeking high space efficiency, low mortality, and long-term durability. Each set consists of 6 cage units structured in a 3-tier A-frame, holding up to 96 layers. Assembled dimensions measure 188cm in length, 220cm in width, and 165cm in height.

Manufactured from high-grade low-carbon steel wire supplied by top steel mills, the cages undergo precision spot welding and mature galvanizing processes. The smooth wire grid prevents foot injuries and secondary bacterial infections, while densified side and bottom grids eliminate feather pecking, cloacal pecking, and layer fatigue syndrome.

The system offers flexible manure removal solutions, supporting either traction scraper systems or bottom manure belt conveyor systems. By doubling space utilization and improving housing ventilation, this cage system boosts production efficiency by over 25%, lowers medication and heating demands by 50% to 70%, halves labor requirements, and achieves an outstanding flock survival rate of up to 99.5%.

Specifications Reference

Technical Indicators

1. 1. Flock Survival Rate: Reaches up to 99.5% due to improved hygiene and bird safety.
   2. Overall Efficiency Boost: Increases production efficiency by more than 25%.
   3. Space Utilization Improvement: Improves space efficiency by 1.0 to 1.5 times compared to floor raising.
   4. Energy & Medication Savings: Reduces medication costs by 50% to 70%; cuts heating/cooling energy costs by 50% to 70%.
   5. Labor Efficiency: Reduces feeding and management labor hours by over 100%.

Manufacturing Standards

1. 1. Raw Material Quality: Strictly selects low-carbon steel wire from top-tier national steel mills for consistent tensile strength and corrosion resistance.
   2. Smooth Spot-Welding: Burr-free, scratch-free grid finish prevents foot injuries and secondary Staphylococcal infections.
   3. Pecking-Free Densified Mesh: Densified bottom grid (2.8x10cm) and side grid (3x12cm) prevent feather pecking, vent pecking, and fatigue syndrome.
   4. Anti-Waste Door Structure: Up-and-down sliding front door (20x26cm) with reinforced locks, providing easy bird handling while preventing feed spilling.
   5. Scientifically Slope Design: Optimized bottom grid declination ensures smooth egg rolling into the front trough, keeping egg breakage rates to a minimum.

Product Advantages

1. 1. High Survival Rate (99.5%): Healthy design protects chicken feet and feathers, resulting in minimal mortality.
   2. Remarkable Cost Savings: Cuts medication expenses by 50%-70% and heating costs by 50%-70%.
   3. Extended Lifespan (15 to 20+ Years): Cold-galvanized version lasts 15 years in well-ventilated houses; Hot-dip galvanized version lasts over 20 years.
   4. Low Egg Breakage: Parameter-optimized bottom mesh angle lets eggs roll out gently without hairline cracks.
   5. Reinforced Large Door Design: Convenient up-and-down sliding door facilitates bird handling, vaccination, and inspection.
   6. Compact Land Footprint: High-density 3-tier A-frame quadruples capacity per house area and supports full automation upgrades.

Daily Maintenance



1. 1. Inspect nipple drinkers and PVC water lines weekly to ensure clean, leak-free water supply.
   2. Clean residual feed inside troughs regularly to prevent dampness and mold growth.
   3. Check the smooth sliding function of up-and-down doors before catching birds or administering vaccinations.
   4. Pressure-wash and thoroughly disinfect cage frames between flock rotations.

OEM / ODM Customization Services

1. 1. Customizable Wire Gauges: Main wire (3.0mm–3.5mm) and secondary wire (2.4mm–2.8mm) options.
   2. Surface Finishing Options: Cold Galvanizing, Hot-Dip Galvanizing, or PVC Powder Coating.
   3. Manure System Matching: Customized for 1.8m manure pit scrapers or 2.0m conveyor belt systems.
   4. Automation Turnkey Integration: Compatible with automatic feeding trolleys, egg collectors, and environmental control systems.
   5. Custom Branding: OEM logo printing on feed troughs, water tanks, and packaging boxes.

FAQ

Q1: How many birds can one full set of this A-type cage system hold?
A1: One complete 3-tier set includes 6 cage units with 24 total doors, accommodating 96 layer hens (4 birds per door).

Q2: What manure removal systems are compatible with this cage?
A2: It supports two options: a traction scraper system (suited for 1.8m wide manure pits) or a bottom manure belt conveyor system (suited for 2.0m wide belts).

Q3: How does this system cut medication and energy costs by 50%–70%?
A3: By elevating birds off the ground and separating them from manure, disease transmission drops sharply, reducing medication needs. Better ventilation and high-density warmth retention lower heating costs in cold seasons.
